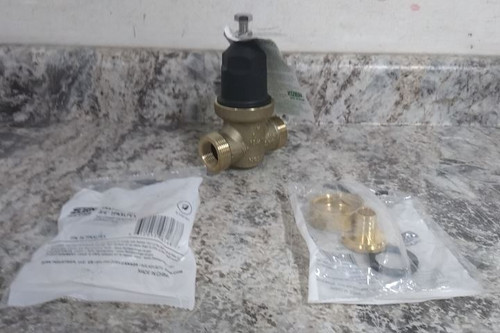

This is a Zurn Wilkins water pressure reducing valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Water Pressure Reducing Valve |
| For Media | Water |
| Application | Residential Use |
| Union Type | Double |
| Inlet Connection Size | 3/4 in |
| Outlet Connection Size | 3/4 in |
| Body Material | Cast Bronze |
| Seat Material | EPDM |
| Disc Material | Elastomer |
| Coating/Lining | NSF Listed Fusion Bonded Epoxy Lining and Coating |
| Pressure Adjustment Range | 15 psi to 75 psi |
| Operating Pressure Range | 15 psi to 400 psi |
| Max. Operating Temperature | 140 °F |
| Factory Set Pressure | 50 psi |
| Max. Continuous Flow Rate | 25.1 gpm |
| Port Design | Full Port |
| Overall Width | 2-13/16 in |
| Overall Height | 5-1/2 in |
| Low-Lead Compliance | Low-Lead Compliant |
