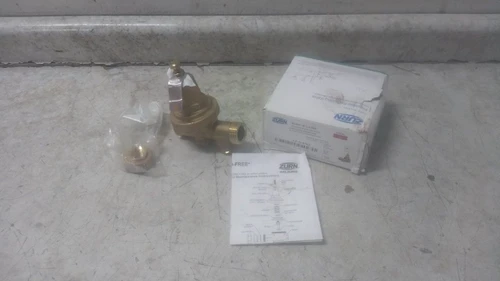

This is a Zurn Wilkins water pressure reducing valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Water Pressure Reducing Valve |
| Manufacturer Part Number | 12-600XL |
| For Media | Water |
| Application | Commercial Use; Residential Use |
| Connections | FNPT x FNPT |
| Union Type | Single |
| Inlet Connection Size | 1/2 in |
| Outlet Connection Size | 1/2 in |
| Body Material | Cast Bronze |
| Seat Material | Stainless Steel |
| Coating/Lining | NSF Listed Fusion Bonded Epoxy Lining and Coating |
| Pressure Adjustment Range | 25 psi to 75 psi |
| Operating Pressure Range | 25 psi to 300 psi |
| Max. Operating Temperature | 140 °F |
| Factory Set Pressure | 50 psi |
| Max. Continuous Flow Rate | 16.6 gpm |
| Port Design | Full Port |
| Overall Width | 2-3/4 in |
| Overall Height | 6-3/16 in |
