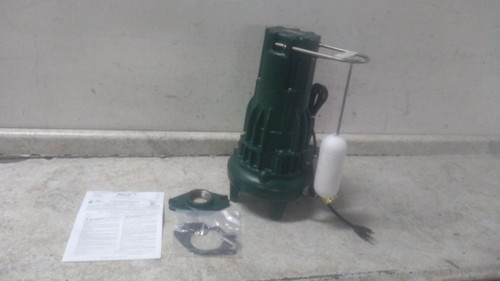

This is a Zoeller sewage ejector pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the proper outlet on site to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Sewage Ejector Pump |
| Manufacturer Part Number | D284 |
| Switch Actuation | Vertical Float |
| Switch Electrical Connection | Integral |
| HP | 1 |
| RPM | 1,725 RPM |
| Rated Voltage | 230V AC |
| Phase - Pumps | 1 |
| Amps | 8.90 A |
| Motor Type | Capacitor Start; Oil-filled |
| Body Material | Cast Iron |
| Impeller Material | Cast Iron |
| Shaft Seal Material - Pumps | Ceramic; Carbon |
| On Point | 15-1/4 in |
| Off Point | 5-1/4 in |
| Flow Rate @ 10 Ft. of Head | 157 gpm |
| Flow Rate @ 15 Ft. of Head | 133 gpm |
| Flow Rate @ 20 Ft. of Head | 106 gpm |
| Max. Diameter Solids | 2 in |
| Min. Sump Pit Dia. | 18 in |
| Body Dia. | 13-9/16 in |
| Overall Height | 19-9/16 in |
| Cord Length | 10 ft |
| Discharge | 2 in FNPT |
| Max. Liquid Temp. | 104 °F |
| Max. Head | 35 ft |
| Duty Cycle | Continuous |
| Thermal Protection | Yes |
