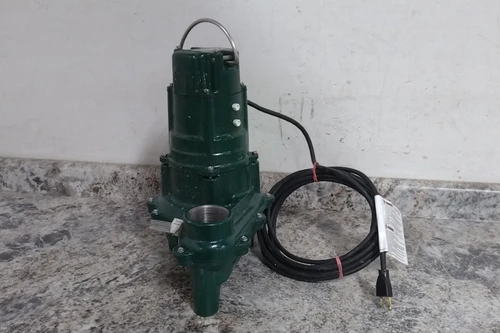

This Zoeller Model N270-F Waste-Mate submersible sewage ejector pump features a 1 HP, 115V single-phase motor delivering up to 3,450 RPM. Built with durable cast iron motor housing and pump body, it is designed for reliable residential sewage ejector and septic system applications. It operates non-automatically (requiring an external float switch or control panel) and features a 2-inch FNPT vertical discharge that handles up to 2-inch spherical solids.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are cosmetic scratches, scuffs, and paint wear on the cast iron housing, including a chip/scrape near the lower base flange. Additionally, the outer power cord jacket is pinched where it enters the strain relief nut on top of the pump housing.
Defects Noted:
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Sewage Ejector Pump |
| Switch | Not Included |
| Series | Model 270 |
| For Media Type | Sewage Water |
| Power Source | Corded Electric |
| Horsepower | 1 hp |
| Motor Speed | 3,450 RPM |
| Rated Voltage | 115V AC |
| Frequency | 60 Hz |
| Current | 15.00 A |
| Phase | Single |
| Motor Housing Material | Cast Iron |
| Volute Material | Cast Iron |
| Impeller Material | Thermoplastic |
| Shaft Seal Material | Carbon/Ceramic |
| Flow Rate @ 10' of Head | 101 gpm |
| Max. Head | 29 ft |
| Max. Dia. Solids | 2 in |
| Max. Media Temp. | 130 °F |
| Duty Cycle | Continuous |
| Cord Length | 20 ft |
| Shaft Seal Type | Single Mechanical |
| Discharge | 2 in FNPT |
| Discharge Orientation | Vertical |
| Min. Sump Pit Dia. | 18 in |
| Hazardous Location Class | Not Rated |
| Requires Control Panel | No Control Panel Required |
| Body Dia. | 13-1/8 in |
| Width at Widest Point | 13-1/8 in |
| Overall Height | 15 in |
| Country of Origin | USA |
