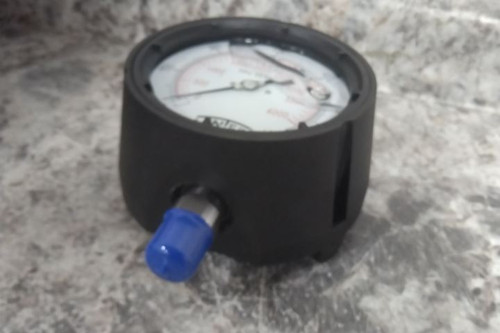

This is a Winters process pressure gauge. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Process Pressure Gauge |
| Manufacturer Part Number | PPC5069G-SG45 |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/2 in |
| Process Connection Type | NPT |
| Accuracy | ±0.5% |
| Case Material | Phenolic |
| Dial Face Color | White |
| Gauge Accuracy Grade | Grade 2A - Process |
| Gauge Wetted Parts | Stainless Steel |
| Gauge Lens Material | Safety Glass |
| Pressure Range | 0 psi to 600 psi |
| Process Connection | 1/2 in NPT Male |
| Dial Color | White |
| Gauge Case Material | Phenolic |
| Gauge Case Liquid | Glycerin |
| Lens Material | Safety Glass |
| Nominal Dial Size | 4-1/2 in |
| Pressure Range Type | Pressure |
| Primary Scale Units | psi |
| Bezel Gasket Material | Silicone |
| Bezel Material | Phenolic |
| Blowout Safety Back | Yes |
| Case Color | Black |
| Case Depth | 3.4 in |
| Case Diameter | 5.835 in |
| Cleaned for Oxygen Service | No |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Liquid-Filled Case | Yes |
| Mounting Type | Stem-Mount |
| Non-Sparking | No |
| Over-Pressure Limit | 25% |
| Panel-Mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Process Pressure Gauge |
| Primary Scale Minor Graduations | 10; 100 |
| Primary Scale Numeric Increments | 50; 500 |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Scale Units | kPa |
| Sensor Material | 316L Stainless Steel |
| Sensor Type | Bourdon Tube |
| Socket Material | 316L Stainless Steel |
| Series | PPC |
| IP Rating | IP65 |
| NEMA Enclosure Rating | 4 |
| Primary Scale Pressure Measurement - Maximum | 600 psi |
| Primary Scale Pressure Measurement - Minimum | 0 psi |
| Process Media Temperature - Minimum | -40 °F |
| Process Media Temperature - Maximum | 250 °F |
| Secondary Scale Pressure Measurement - Minimum | 0 kPa |
| Secondary Scale Pressure Measurement - Maximum | 4,140 kPa |
| Operating Temperature - Maximum | 150 °F |
| Operating Temperature - Minimum | -4 °F |
| Wetted Parts Material | 316L Stainless Steel 316L Stainless Steel |
| Vibration_Base | Field Fillable: No Liquid-Filled Case: Yes Dry Dampening Feature: None |
| Vibration Resistance Properties | Liquid-Filled |
| Certificate of Calibration | Not Included |
