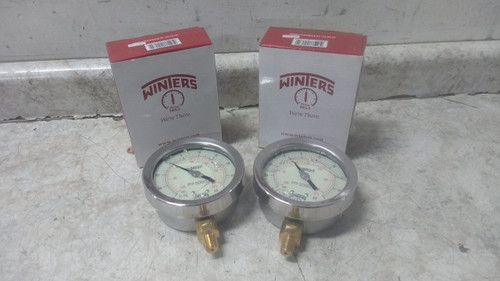

This is a package of 2 Winters industrial compound gauges. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Industrial Compound Gauge |
| Manufacturer Part Number | PFP1021WBG |
| Pressure Range Type | Compound |
| Nominal Dial Size | 4 in |
| Pressure Range | 30 to 0 to 30 in Hg/psi |
| Vibration Resistance | Liquid-Filled |
| Gauge Case Liquid | Glycerin |
| Process Connection | 1/4 in NPT Male |
| Process Connection Location | Bottom |
| Secondary Pressure Range | 0 to 210 |
| Secondary Scale Units | kPa |
| Gauge Case Material | 304 Stainless Steel |
| Case Material | Stainless Steel |
| Dial Face Color | Multiple |
| Dial Color | Glow-in-the-Dark White |
| Accuracy | ±1.0% |
| Gauge Accuracy Grade | Grade 1A - Industrial |
| Accuracy Scale | Full Scale |
| Includes Calibration Certificate | No |
| Scale Type | Dual |
| Sensor Type | Bourdon Tube |
| Gauge Wetted Parts | Brass / Bronze |
| Wetted Parts Material | Brass OT58/Phosphor Bronze |
| Socket Material | Brass OT58 |
| Sensor Material | Phosphor Bronze |
| Hazardous Location Rating | Not Rated |
| IP/NEMA Rating | IP66; NEMA 4X |
| Includes Vent Plug | No |
| Blowout Safety Back | Yes |
| Over-Pressure Limit | 25% |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Bezel Gasket Material | Buna-N (Silicone Rubber Option) |
| Bezel Material | 304 Stainless Steel |
| Bezel Mounting Type | Bayonet Ring |
| Removable Bezel | Yes |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Liquid-Filled Case | Yes |
| Mounting Type | Stem-Mount |
| Primary Pressure Range | 30 to 0 to 30 |
| Primary Scale Units | in Hg/psi |
| Process Connection Gender | Male |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT |
| Ambient Operating Temperature Range | -4° to 150°F (-20° to 65°C) |
| Application | Compressors; Hydraulics; Oil and Gas Industry; Outdoor; Process Conditions; Process Industries; Pumps; Severe Ambient Conditions; Vibration Measurement |
| Case Color | Gray |
| Case Construction | Welded Joint |
| Case Depth | 1.95 in |
| Case Diameter | 3.964 in |
| Cleaned for Oxygen Service | No |
| Compatible Process Media | Oil |
| Dial Face Material | Aluminum |
| Freeze Resistant Movement | No |
| Includes Mounting Hardware | No |
| Movement Material | Brass OT59 |
| Non-Sparking | No |
| Panel-Mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Process Temperature Range | -40° to 200°F |
| Series | PFP |
