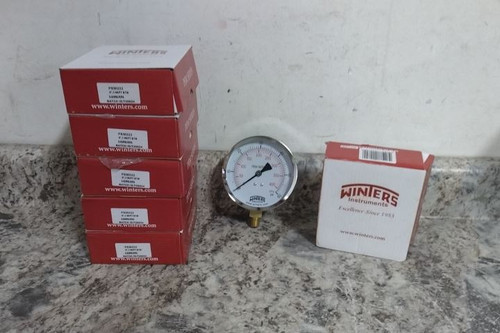

This is a package of 6 Winters lead-free pressure gauges. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Lead-Free Pressure Gauge |
| Manufacturer Part Number | PEM222LF |
| Accuracy | ±3-2-3% |
| Process Connection | 1/4 in NPT Male |
| Process Connection Location | Bottom |
| Gauge Case Material | Steel |
| Lens Material | Glass |
| Nominal Dial Size | 4 in |
| Pressure Gauge Type | Lead-Free Pressure Gauge |
| Pressure Range Type | Pressure |
| Case Material | Steel |
| Gauge Wetted Parts | Brass / Bronze |
| Lens Material - Gauge | Glass |
| Pressure Range | 0 psi to 60 psi |
| Process Connection Gender | Male |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Gauge Case Liquid | None |
| Liquid-Filled Case | No |
| Primary Scale Units | psi |
| Accuracy Grade | Grade B |
| Series | PEM-LF |
| Bezel Material | Steel |
| Blowout Safety Back | No |
| Case Color | Black |
| Case Depth | 1.46 in |
| Case Diameter | 3.941 in |
| Case Finish | Painted |
| Cleaned for Oxygen Service | No |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Freeze Resistant Movement | No |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Mounting Type | Stem-Mount |
| Non-Sparking | No |
| Over-Pressure Limit | 25% of Full Scale |
| Pointer Material | Aluminum |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Scale Units | kPa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Socket Material | Lead Free Brass |
| Panel-Mountable | No |
| Pointer Color | Black |
| IP Rating | IP52 |
| NEMA Enclosure Rating | 5 |
| Operating Temperature - Maximum | 150 °F |
| Operating Temperature - Minimum | -40 °F |
| Primary Scale Pressure Measurement - Maximum | 60 psi |
| Primary Scale Pressure Measurement - Minimum | 0 psi |
| Process Media Temperature - Maximum | 150 °F |
| Process Media Temperature - Minimum | -40 °F |
| Secondary Scale Pressure Measurement - Maximum | 410 kPa |
| Secondary Scale Pressure Measurement - Minimum | 0 kPa |
| Compatible with Brand - TS Only | Universal |
| Wetted Parts Material | Lead Free Brass Phosphor Bronze |
| IP/NEMA Rating | IP52 5 |
| Vibration Resistance Properties | None |
