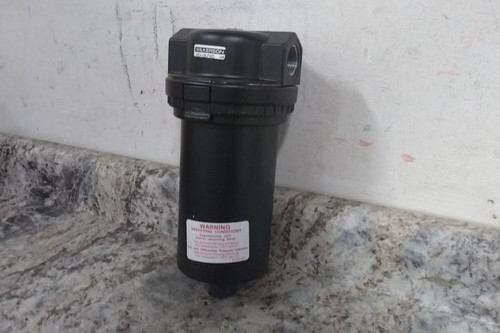

This is a Wilkerson pneumatic condensate separator. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Pneumatic Condensate Separator |
| Manufacturer Part Number | WSA-06-FM0 |
| Type | Automatic Internal Drain |
| Air Inlet Size | 3/4 in |
| Air Inlet Type | NPT |
| Maximum Flow @ 100 psi | 100 cfm |
| Maximum Flow Rate | 100 cfm |
| Maximum Operating Pressure | 200 psi |
| Maximum Operating Temperature | 150 °F |
| Outside Diameter | 4-5/8 in |
| Overall Length | 10 in |
| Weight | 6 lb |
| Body Material | Zinc |
| Air Outlet Size | 3/4 in |
| Air Outlet Type | NPT |
| Bowl Guard Material | Metal |
| Drain Type | Automatic |
| Filtered Substance | Water |
| For Substance Type | Liquid |
| Minimum Operating Temperature | 32 °F |
| Overall Depth | 10 in |
| Overall Width | 4-5/8 in |
| Pressure Drop | 1 psid |
| Seal Material | Nitrile |
