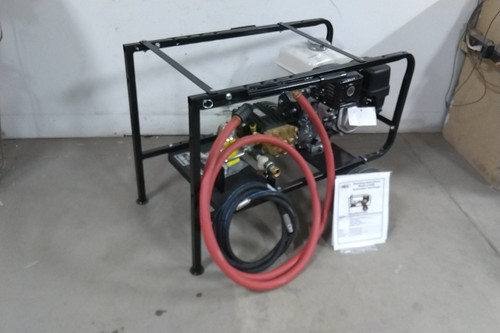

This is a Wheeler-Rex hydrostatic test pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit requires fuel to run. One of the wheels does not roll properly and rubs the side of the frame when moving. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Hydrostatic Test Pump |
| Manufacturer Part Number | 373080 |
| Pump Design | Triplex Plunger |
| Horsepower | 8-1/2 hp |
| Engine Brand | Honda |
| Max. Motor Speed | 3,400 RPM |
| Max. Flow Rate | 3.5 gpm |
| Max. Gauge Reading | 4,000 psi |
| Max. Discharge Pressure | 3,000 psi |
| Suction Port | 1/2 in Hose |
| Intake Connection Size | 1/2 in |
| Intake Connection Type | Hose |
| Intake Hose Size | 3/4 in |
| Intake Hose Type | Hose |
| Intake Hose Length | 10 ft |
| Discharge Port | 1/2 in Hose |
| Discharge Connection Size | 1/2 in |
| Discharge Connection Type | Hose |
| Discharge Hose Size | 1/2 in |
| Discharge Hose Type | Hose |
| Discharge Hose Length | 10 ft |
| Shaft Outer Diameter | 1 in |
| Lubrication | 20 Ounces Udor Lube; Continuous Oil Bath |
| Overall Height | 27 in |
| Overall Length | 39 in |
| Overall Width | 28 in |
| Relief Valve Type | Adjustable Pressure |
| Dimensions (LxWxH) | 39 in x 28 in x 27 in |
