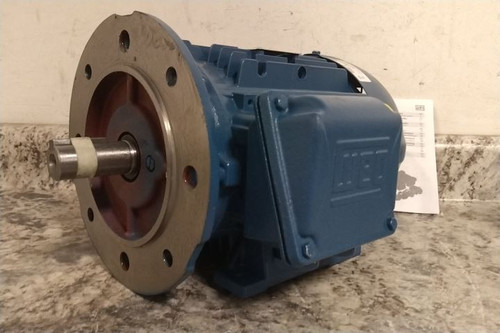

This is a Weg metric motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Metric Motor |
| Manufacturer Part Number | 13984012 |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| No. of Speeds | 1 |
| HP | 2 |
| Nameplate RPM | 1,755 |
| Voltage | 460VAC |
| Hz | 60 |
| Full Load Amps | 2.8 |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 90L |
| Usable @ 208V | No |
| Usable @ 200V | No |
| Motor Service Factor | 1.25 |
| Max. Ambient Temp. | 40 °C |
| Motor Thermal Protection | None |
| Ins. Class | F |
| NEMA Design | N |
| Motor Mounting Type | Face/Base |
| Motor Shaft Design | Keyed |
| Motor Frame Material | Aluminum |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 24 mm |
| Shaft Length | 50 mm |
| Motor Bearings | Ball |
| Length Less Shaft | 279 mm |
| Overall Length | 329 mm |
| Weight | 47.8 lb |
| Nominal Efficiency | 86.5 % |
| CC Number | CC029A |
| Full Load Amps @ 50Hz | 3.2; 5.5/3.2; 5.6/3.2 |
| HP @ 50Hz | 2 |
