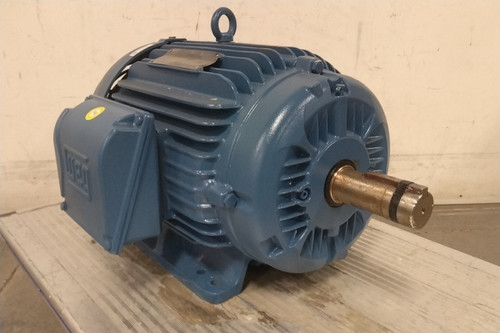

WEG 02012ET3E286T-W22 Severe Duty AC Motor
This WEG 20 HP 3-phase electric motor (Model 02012ET3E286T-W22) is designed for general industrial and severe-duty applications. It features a heavy-duty cast iron frame, 286T frame size, 1175 RPM nominal speed, and a TEFC enclosure rated for IP55 protection, operating on 230/460V AC at 60 Hz.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand.
Defects Noted:
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | 02012ET3E286T-W22 |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| No. of Speeds | 1 |
| HP | 20 hp |
| Nameplate RPM | 1175 rpm |
| Voltage | 230/460VAC |
| Hz | 60 Hz |
| Full Load Amps | 48.4/24.2 A |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 286T |
| Usable @ 208V | Yes |
| Usable @ 200V | No |
| Motor Service Factor | 1.25 |
| Max. Ambient Temp. | 40 °C |
| Motor Thermal Protection | None |
| Ins. Class | F |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Frame Material | Cast Iron |
| Shaft Dia. | 1-7/8 in |
| Shaft Length | 4-5/8 in |
| Motor Bearings | Ball |
| Length Less Shaft | 23-5/16 in |
| Overall Length | 27-15/16 in |
| Weight | 421 lb |
| Nominal Efficiency | 91.7 % |
| CC Number | CC029A |
| Full Load Amps @ 50Hz | 21.2; 21.3; 21.8; 27.2; 28.1; 29.6 A |
| HP @ 50Hz | 15, 20 |
| IP Rating | IP55 |
