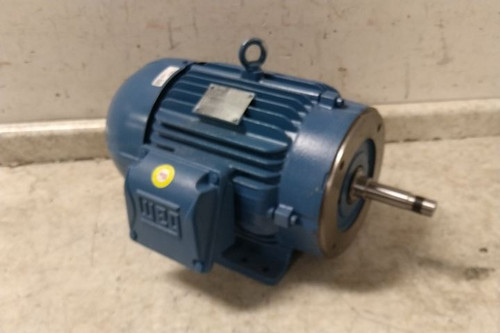

This is a Weg close-coupled pump motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Close-Coupled Pump Motor |
| Manufacturer Part Number | 01536ET3E215JM-W22 |
| Motor Application | Pump |
| Motor Sub Application | Close-Coupled Pump |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| No. of Speeds | 1 |
| HP | 15 |
| Nameplate RPM | 3,535 |
| Voltage | 230/460VAC |
| Hz | 60 Hz |
| Full Load Amps | 34.9/17.4 |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 213/5JM |
| Usable @ 208V | Yes |
| Usable @ 200V | No |
| Motor Service Factor | 1.25 |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Max. Ambient Temp. | 40 °C |
| NEMA Design | A |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | Horizontal |
| Inverter Rated | Yes |
| Inverter Rating | 1000:1 |
| Motor Frame Material | Cast Iron |
| Shaft Dia. | 7/8 in |
| Shaft Length | 4-1/4 in |
| Shaft Material | Carbon Steel |
| Motor Shaft Design | JM Threaded |
| Conduit Box Position | F1 |
| Conduit Box Location | Exterior |
| Bolt Circle Dia. | 7-1/4 in |
| Motor Bearings | Ball |
| Regreasable Bearings | Permanently Lubricated Bearings |
| Height | 10-1/2 in |
| Overall Length | 20-3/8 in |
| Length Less Shaft | 16-1/8 in |
| Body Dia. | 10.5 in |
| Weight | 178 lb |
| CC Number | CC029A |
| Nominal Efficiency | 91 % |
