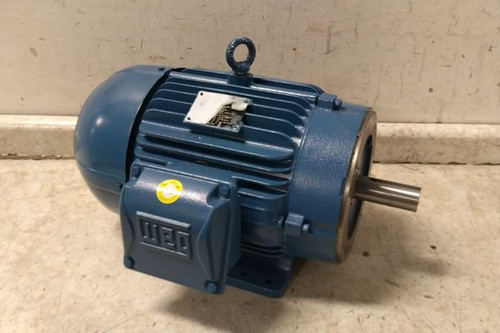

This is a Weg general purpose motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand but is missing the key. The fan cover is dented. There are also some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | 01018ET3E215TC-W22 |
| Motor Application | General Purpose |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| No. of Speeds | 1 |
| HP | 10 |
| Nameplate RPM | 1765 rpm |
| Voltage | 230/460V AC |
| Hz | 60 Hz |
| Full Load Amps | 25.3/12.7A |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 215TC |
| Usable @ 208V | Yes |
| Usable @ 200V | No |
| Motor Service Factor | 1.25 |
| Max. Ambient Temp. | 40 °C |
| Motor Thermal Protection | None |
| Ins. Class | F |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Type | C-Face; Rigid Base |
| Motor Mounting Position | Horizontal |
| Inverter Rated | Yes |
| Motor Shaft Design | Keyed |
| Motor Frame Material | Cast Iron |
| Shaft Dia. | 1-3/8 in |
| Shaft Length | 3-3/8 in |
| Motor Bearings | Ball |
| Length Less Shaft | 16-1/8 in |
| Overall Length | 19-1/2 in |
| Weight | 179 lb |
| Nominal Efficiency | 91.7 % |
| CC Number | CC029A |
| Full Load Amps @ 50Hz | 10.9; 11.0; 11.2; 13.8; 14.2; 15.0 A |
| HP @ 50Hz | 7-1/2, 10 |
