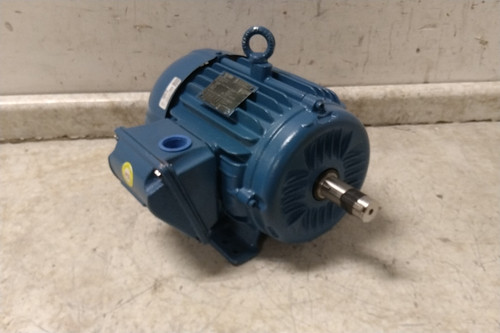

This is a Weg 00536ET3E184T-W22 5 HP NEMA Premium W22 severe duty electric motor. Built with a heavy-duty cast iron frame (184T), it operates at 3500 RPM on 230/460V AC 3-phase power with a totally enclosed fan-cooled (TEFC) enclosure, designed for high-efficiency industrial applications.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand.
Defects Noted: The item shows cosmetic scuffs along the outer edges and has a dented rear fan cover.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | 00536ET3E184T-W22 |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| No. of Speeds | 1 |
| HP | 5 |
| Nameplate RPM | 3500 rpm |
| Voltage | 230/460V AC |
| Hz | 60 Hz |
| Full Load Amps | 11.8/5.90 A |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 184T |
| Usable @ 208V | Yes |
| Usable @ 200V | No |
| Motor Service Factor | 1.25 |
| Max. Ambient Temp. | 40 °C |
| Motor Thermal Protection | None |
| Ins. Class | F |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Frame Material | Cast Iron |
| Shaft Dia. | 1-1/8 in |
| Shaft Length | 2-3/4 in |
| Motor Bearings | Ball |
| Length Less Shaft | 13-1/8 in |
| Overall Length | 15-7/8 in |
| Weight | 93.7 lb |
| Nominal Efficiency | 88.5 % |
| CC Number | CC029A |
| Full Load Amps @ 50Hz | 5.43; 5.57; 5.79; 6.61; 6.78; 7.14 A |
| HP @ 50Hz | 4, 5 |
