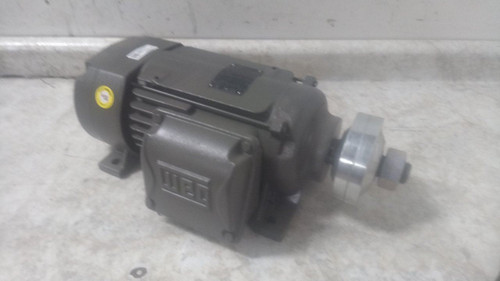

This is a Weg saw arbor motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Saw Arbor Motor |
| Motor Application | Power Tool |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| No. of Speeds | 1 |
| HP | 3 |
| Nameplate RPM | 3,500 |
| Voltage | 208-230/460V AC |
| Full Load Amps | 9.5-8.6/4.3 A |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 80S |
| Usable @ 208V | Yes |
| Usable @ 200V | No |
| Hz | 60 Hz |
| Motor Service Factor | 1 |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Max. Ambient Temp. | 40 °C |
| Motor Shaft Rotation | CWSE |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Frame Material | Cast Iron |
| Number of Shafts | 1 |
| Shaft Dia. | 1-3/16 in |
| Shaft Length | 2-1/2 in |
| Motor Shaft Design | Keyed |
| Conduit Box Position | F1 |
| Conduit Box Location | Exterior |
| Motor Bearings | Ball |
| Overall Length | 18-9/16 in |
| Length Less Shaft | 16 in |
| Extended Thru-Bolts | No |
| Nominal Efficiency | 80.5 % |
