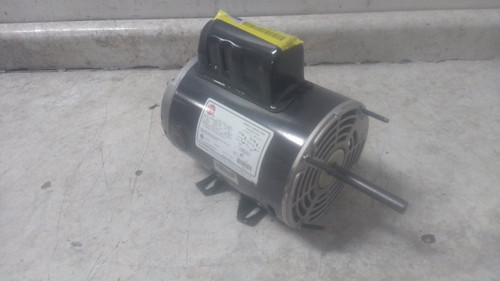

This is a US Motors direct drive blower motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. The mounting is bent and the mounting bolts are bent as well. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Direct Drive Blower Motor |
| Manufacturer Part Number | F25C |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air-Over |
| No. of Speeds | 1 |
| HP | 3/4 |
| Nameplate RPM | 1,680 |
| Voltage | 115/230V AC |
| Hz | 60 Hz |
| Full Load Amps | 8.2/4.1A |
| Phase | Single |
| Duty Cycle | Continuous |
| Frame | 48Z |
| Usable @ 208V | No |
| Usable @ 200V | No |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Ins. Class | B |
| Motor Shaft Rotation | CW/CCW |
| Max. Ambient Temp. | 40 °C |
| Motor Mounting Position | All Angle |
| Number of Shafts | 1 |
| Shaft Dia. | 1/2 in |
| Shaft Length | 3 in |
| Motor Bearings | Ball |
| Motor Shaft Design | Flat |
| Conduit Box Position | F3 |
| Length Less Shaft | 8-7/8 in |
| Mounting Holes | (4) #10-32 |
| Body Dia. | 5-5/8 in |
| Stud Quantity | 4 |
| Bolt Circle Dia. | 5-1/8 in |
| Mounting Stud Location | Shaft End |
| Stud Size | #10-32 |
