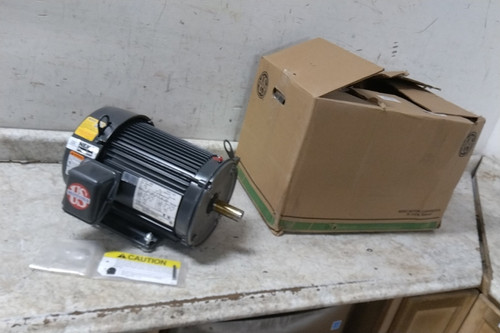

This U.S. Motors U5P2EC is a 5 HP, 3-phase general-purpose electric motor designed for continuous-duty industrial applications. Features include a 184TC frame, TEFC enclosure, 1760 RPM operating speed, and dual-voltage rating of 230/460V AC.
Testing & Inspection:
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand.
Defects Noted:
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | U5P2EC |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| No. of Speeds | 1 |
| HP | 5 |
| Nameplate RPM | 1760 |
| Voltage | 230/460V AC |
| Hz | 60/50 Hz |
| Full Load Amps | 12.7/6.3A |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 184TC |
| Motor Service Factor | 1.25 |
| Max. Ambient Temp. | 40 °C |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | Horizontal or Vertical Shaft Down |
| Motor Shaft Design | Keyed |
| Motor Frame Material | Cast Aluminum |
| Shaft Dia. | 1-1/8 in |
| Shaft Length | 2-3/4 in |
| Motor Bearings | Ball |
| Length Less Shaft | 14-1/8 in |
| Overall Length | 17 in |
| Nominal Efficiency | 89.5 % |
| CC Number | CC030A |
