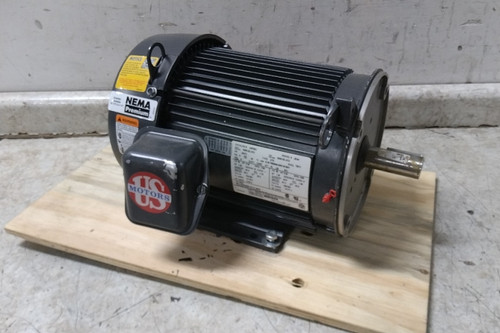

This U.S. Motors 5 HP 3-phase general purpose electric motor is engineered for industrial applications requiring continuous duty and high efficiency. Features a 184TC frame, TEFC (Totally Enclosed Fan-Cooled) enclosure design, C-face mounting with footed base, and dual-voltage rating (230/460V AC at 60 Hz / 200/400V AC at 50 Hz).
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand.
Defects Noted:
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | U5P2EC |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| No. of Speeds | 1 |
| HP | 5 |
| Nameplate RPM | 1760 |
| Voltage | 230/460V AC |
| Hz | 60/50 Hz |
| Full Load Amps | 12.7/6.3 A |
| Phase | Three |
| Frame | 184TC |
| Motor Service Factor | 1.25 |
| Max. Ambient Temp. | 40 °C |
| Motor Thermal Protection | None |
| Duty Cycle | Continuous |
| Ins. Class | F |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | Horizontal or Vertical Shaft Down |
| Motor Shaft Design | Keyed |
| Motor Frame Material | Cast Aluminum |
| Shaft Dia. | 1-1/8 in |
| Shaft Length | 2-3/4 in |
| Motor Bearings | Ball |
| Length Less Shaft | 14-1/8 in |
| Overall Length | 17 in |
| Nominal Efficiency | 89.5 % |
| CC Number | CC030A |
