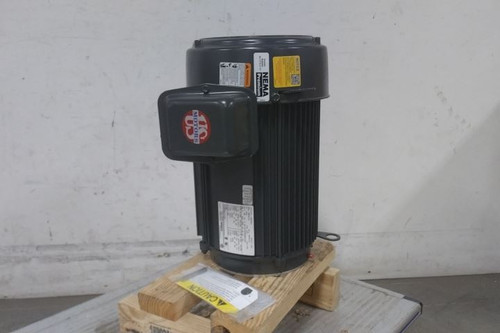

This is a U.S. Motors general purpose motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | U15P1DFCR |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| No. of Speeds | 1 |
| HP | 15 |
| Nameplate RPM | 3518 |
| Voltage | 230/460VAC |
| Hz | 60/50 Hz |
| Full Load Amps | 40.0-35.0/17.4 A |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 215TC |
| Motor Service Factor | 1.25 |
| Max. Ambient Temp. | 40 °C |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Type | Face |
| Motor Mounting Position | Horizontal |
| Inverter Rated | Yes |
| Motor Shaft Design | Keyed |
| Motor Frame Material | Cast Aluminum |
| Shaft Dia. | 1-3/8 in |
| Shaft Length | 3-1/8 in |
| Motor Bearings | Ball |
| Length Less Shaft | 17 in |
| Overall Length | 20-1/8 in |
| Nominal Efficiency | 91 % |
| CC Number | CC030A |
