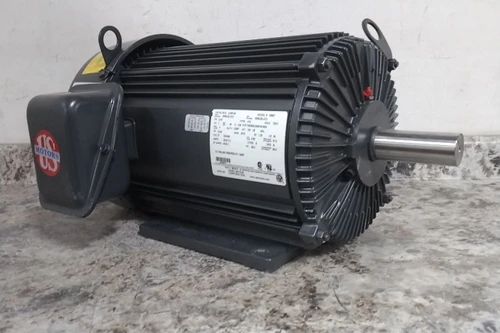

This U.S. Motors U15P1AF general-purpose three-phase electric motor delivers 15 HP at 3,518 RPM on 230/460V AC. Built with a heavy-duty NEMA 215T frame and a totally enclosed fan-cooled (TEFC) aluminum enclosure, it is designed for demanding industrial and commercial applications.
Inspection & Defects Noted:
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand but appears to be missing the key.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | U15P1AF |
| Motor Design | Three-Phase |
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
| Phase | Three |
| Nameplate Horsepower @ 60 Hz | 15 hp |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
| Nameplate RPM @ 60 Hz | 3,518 RPM |
| Full Load Amps @ 60 Hz | 35.0/17.3 A |
| Nameplate Service Factor @ 60 Hz | 1.25 |
| Frame Family | NEMA 210 |
| Frame Size | 215T |
| Frequency | 60/50 Hz |
| Number of Speeds | 1 |
| Motor Thermal Protection | None |
| Insulation Class | F |
| Mounting Type | Rigid Base |
| Motor Shaft Rotation | CW/CCW |
| Output Shaft (Dia x L) | 1-3/8 in x 3-3/8 in |
| Application | General Purpose |
| Ambient Temperature - Maximum | 40 °C |
| Bearing Type | Ball |
| CC Number | CC030A |
| Duty Cycle | Continuous |
| Frame Material | Aluminum |
| Length Less Shaft | 18-1/4 in |
| Overall Length | 20-1/2 in |
| Mounting Position | Horizontal/Vertical Shaft Down |
| Nameplate RPM @ 50 Hz | 1,725/1,425 RPM |
| Nameplate Voltage @ 50 Hz | 208V AC; 230V AC; 460V AC |
| Nominal Efficiency | 91 % |
| Shaft Design | Keyed |
| Shaft Length | 3-3/8 in |
| Shaft Diameter | 1-3/8 in |
