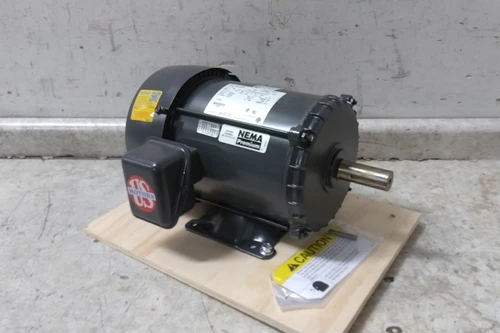

This U.S. Motors S5P2A is a 5 HP 3-phase general purpose electric motor designed for industrial applications such as blowers, compressors, fans, and pumps. Built with a durable rolled steel frame and a totally enclosed fan-cooled (TEFC) enclosure, it operates at 1,755 RPM with dual-voltage support (230/460V) and a standard NEMA 184T frame size.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand.
Defects Noted:
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | S5P2A |
| Motor Application | General Application |
| Motor Sub Application | Blowers; Compressors; Direct Connected Equipment; Fans; Pumps |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| No. of Speeds | 1 |
| HP | 5 |
| Nameplate RPM | 1,755 |
| Voltage | 230/460V |
| Hz | 60 Hz |
| Full Load Amps | 13.5-12.5/6.2 A |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 184T |
| Usable @ 208V | Yes |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 °C |
| Motor Thermal Protection | None |
| Ins. Class | F |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Inverter Rated | Yes |
| Motor Shaft Design | Keyed |
| Motor Frame Material | Steel |
| Shaft Dia. | 1-1/8 in |
| Shaft Length | 2-3/4 in |
| Bearing Protection | Double Shields |
| Length Less Shaft | 13-1/8 in |
| Overall Length | 15-7/8 in |
| Weight | 72 lb |
| Nominal Efficiency | 89.5 % |
| CC Number | CC030A |
