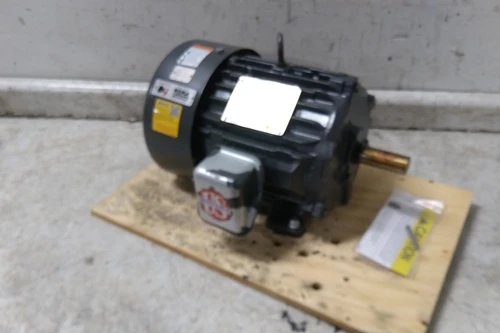

This is a U.S. Motors HD3P2E 3 HP 3-Phase electric motor (Model JF29). Featuring a heavy-duty 182T frame, 1,770 RPM, dual voltage 230/460V rating, continuous duty cycle, and TEFC enclosure design, this motor is built for industrial and hostile duty applications.
Inspection Notes & Condition:
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand.
Defects Noted:
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | HD3P2E |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| No. of Speeds | 1 |
| HP | 3 |
| Nameplate RPM | 1,770 |
| Voltage | 230/460VAC |
| Hz | 60/50 Hz |
| Full Load Amps | 7.8/3.9 A |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 182T |
| Usable @ 208V | Yes |
| Usable @ 200V | Yes |
| Motor Service Factor | 1.25 |
| Max. Ambient Temp. | 40 °C |
| Motor Thermal Protection | None |
| Ins. Class | F |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Inverter Rated | Yes |
| Motor Shaft Design | Keyed |
| Motor Frame Material | Cast Iron |
| Shaft Dia. | 1-1/8 in |
| Shaft Length | 2-3/4 in |
| Bearing Protection | Double Shields |
| Length Less Shaft | 13-9/16 in |
| Overall Length | 16-5/16 in |
| Weight | 90 lb |
| Nominal Efficiency | 89.5 % |
| CC Number | CC030A |
| Full Load Amps @ 50Hz | 7.8/3.9 A |
| HP @ 50Hz | 3 hp |
