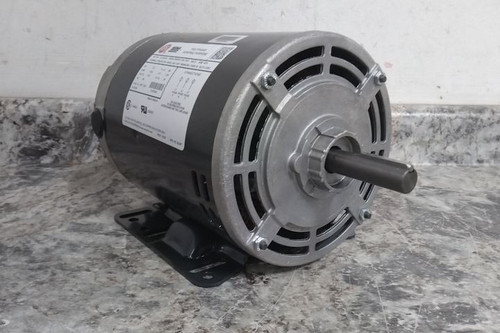

This is a U.S. Motors pump motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Pump Motor |
| Manufacturer Part Number | D12P2GH |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Open Drip Proof |
| No. of Speeds | 1 |
| HP | 1/2 |
| Nameplate RPM | 1725 rpm |
| Voltage | 575 |
| Hz | 60 Hz |
| Full Load Amps | 0.68 A |
| Phase | Three |
| Frame | 56H |
| Usable @ 208V | No |
| Usable @ 200V | No |
| Motor Service Factor | 1.25 |
| Max. Ambient Temp. | 40 °C |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Inverter Rated | No |
| Motor Shaft Design | Keyed |
| Motor Frame Material | Steel |
| Conduit Box Location | Exterior |
| Shaft Dia. | 5/8 in |
| Length Less Shaft | 9-1/2 in |
| Overall Length | 11-3/8 in |
| Weight | 24 lb |
| Nominal Efficiency | 78.2 % |
| Body Dia. | 6.5 in |
