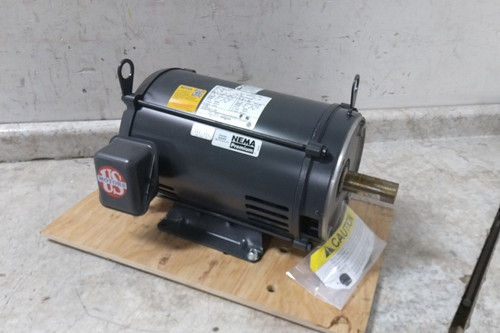

This U.S. Motors D10P2DC is a heavy-duty 10 HP general-purpose three-phase electric motor designed for industrial applications including pumps, fans, blowers, and air compressors. Built with a 215TC frame, 1765 RPM rating, 208-230/460V rating, and an Open Drip Proof (ODP) enclosure, it delivers reliable continuous-duty performance.
Defects Noted: We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | D10P2DC |
| Motor Application | General Purpose |
| Motor Sub Application | Air Compressor; Fan/Blower; Pump |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Open Drip Proof |
| HP | 10 |
| Nameplate RPM | 1,765 |
| No. of Speeds | 1 |
| Voltage | 230/460VAC |
| Full Load Amps | 26.3-23.8/11.9 A |
| Phase | Three |
| Frame | 215TC |
| Usable @ 208V | Yes |
| Hz | 60/50 Hz |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 °C |
| Motor Thermal Protection | None |
| Duty Cycle | Continuous |
| Ins. Class | F |
| NEMA Design | B |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Inverter Rated | Yes |
| Motor Shaft Design | Keyed |
| Removable Base | Regreasable |
| Motor Frame Material | Steel |
| Shaft Dia. | 1-3/8 in |
| Shaft Length | 3-1/8 in |
| Bearing Protection | Double Shields |
| Length Less Shaft | 13-1/2 in |
| Overall Length | 16-3/4 in |
| Weight | 110 lb |
| Nominal Efficiency | 91.7 % |
| CC Number | CC030A |
| Full Load Amps @ 50Hz | 26.3-23.8/11.9 A |
| HP @ 50Hz | 10 hp |
