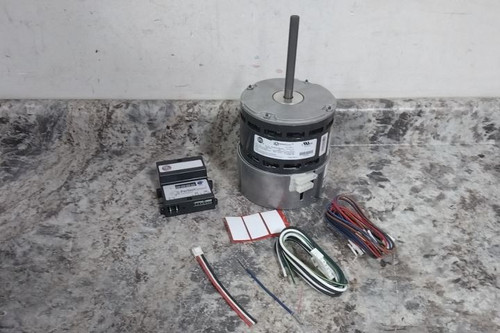

This is a U.S. Motors ECM direct drive blower motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | ECM Direct Drive Blower Motor |
| Manufacturer Part Number | 7630UI |
| Motor Application | HVAC/R |
| Motor Design | ECM |
| Motor Enclosure Design | Open Air-Over |
| No. of Speeds | 1 |
| HP | 1/2, 1/3 |
| Nameplate RPM | 1,250 |
| Voltage | 277V AC |
| Hz | 60/50 Hz |
| Full Load Amps | 3.2 A |
| Phase | Single |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Usable @ 208V | No |
| Usable @ 200V | No |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Ins. Class | B |
| Motor Shaft Rotation | CWLE |
| Max. Ambient Temp. | 40 °C |
| Motor Mounting Type | Band |
| Motor Mounting Position | Horizontal, Vertical |
| Number of Shafts | 1 |
| Motor Frame Material | Steel |
| Shaft Dia. | 1/2 in |
| Shaft Length | 4-1/2 in |
| Motor Bearings | Ball |
| Motor Shaft Design | Flat |
| Overall Length | 10-3/4 in |
| Length Less Shaft | 6-1/4 in |
| Body Dia. | 5-7/8 in |
| Weight | 12 lb |
| Cord Length | 36 in |
| Stack Size | 1-3/8 in |
| Nominal Efficiency | 0.82 % |
| Capacitor Required | No |
