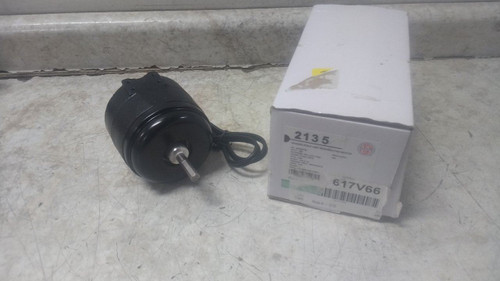

This is a U.S. Motors condenser fan motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Condenser Fan Motor |
| Manufacturer Part Number | 2135 |
| Motor Design | Shaded Pole |
| Motor Enclosure Type | Totally Enclosed Air-Over |
| Mounting Type | Rigid Base |
| Wattage | 50 W |
| Number of Speeds | 1 |
| Nameplate RPM @ 60 Hz | 1,500 RPM |
| Nameplate Voltage @ 60 Hz | 230V AC |
| Frequency | 60 Hz |
| Phase | Single |
| Body Diameter | 4 in |
| Motor Thermal Protection | Impedance |
| Nameplate Service Factor @ 60 Hz | 1 |
| Shaft Diameter | 3/8 in |
| Frame Material | Cast Iron |
| Motor Shaft Rotation | CWLE |
| Ambient Temperature - Maximum | 40 °C |
| Overall Length | 9-3/16 in |
| Mounting Position | All Angle |
| Sub Application | Unit Bearing |
| Capacitor Required | Capacitor Not Required |
| Product Type | Unit Bearing Motor |
