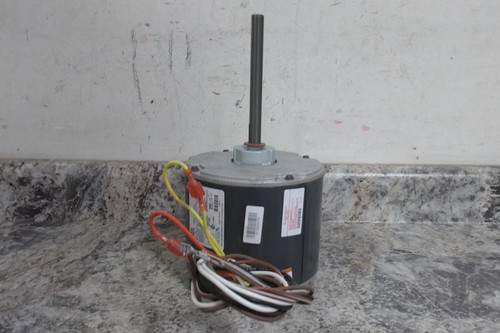

This is a U.S. Motors 1891 1/3 HP condenser fan motor designed for HVAC/R applications. Operating at 208-230V AC (1.6 Amps, 60 Hz) and 1,625 RPM, it features a 48Y frame, totally enclosed air-over (TEAO) design, and a single 1/2 in. shaft.
Inspection & Testing:
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit.
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Condenser Fan Motor |
| Manufacturer Part Number | 1891 |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Application | HVAC/R |
| No. of Speeds | 1 |
| HP | 1/3 |
| Nameplate RPM | 1,625 |
| Voltage | 208-230V AC |
| Hz | 60 Hz |
| Full Load Amps | 1.6 A |
| Phase | Single |
| Frame | 48Y |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Max. Ambient Temp. | 60 °C |
| Motor Shaft Rotation | CCW |
| Motor Mounting Type | Band/Stud |
| Motor Mounting Position | All Angle |
| Shaft Length | 5 in |
| Lead Length | 30 in |
| Shaft Dia. | 1/2 in |
| Motor Bearings | Ball |
| Body Dia. | 5-5/8 in |
| Overall Length | 10-1/8 in |
| Length Less Shaft | 5-1/8 in |
