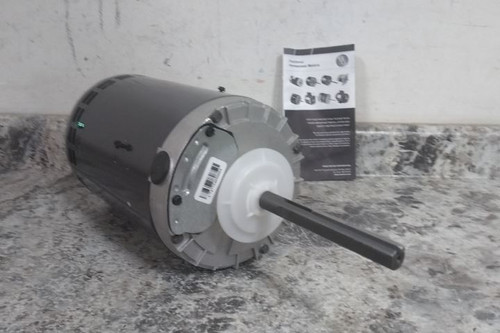

This is a U.S. Motors condenser fan motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Condenser Fan Motor |
| Manufacturer Part Number | 1819H |
| Motor Design | Three-Phase |
| Motor Enclosure Type | Open Air Over |
| Number of Speeds | 1 |
| Nameplate Horsepower @ 60 Hz | 1-1/2 hp |
| Nameplate RPM @ 60 Hz | 1,140 RPM |
| Nameplate Voltage @ 60 Hz | 208-230/460V AC |
| Frequency | 60 Hz |
| Full Load Amps @ 60 Hz | 5.4/2.7 A |
| Phase | Three |
| Frame Size | 56Z |
| Ambient Temperature - Maximum | 70 °C |
| Motor Thermal Protection | Auto |
| Overall Length | 15-3/4 in |
| Shaft Diameter | 5/8 in |
| Length Less Shaft | 11-3/4 in |
| Mounting Type | Belly Band |
| Insulation Class | F |
| Frame Material | Steel |
| Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Sub Application | Condenser Fan |
| Shaft Length | 4 in |
| Body Diameter | 6.3 in |
| Capacitor Required | Capacitor Not Required |
