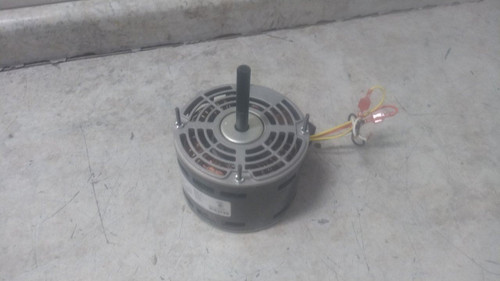

This is a U.S. Motors direct drive blower motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Direct Drive Blower Motor |
| Manufacturer Part Number | 1357 |
| Mounting Type | Stud |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Type | Open Air Over |
| Nameplate Horsepower @ 60 Hz | 1/8 hp |
| Nameplate RPM @ 60 Hz | 1,600 RPM |
| Duty | Continuous |
| Frame Size | 48Y |
| Nameplate Voltage @ 60 Hz | 115V AC |
| Full Load Current @ 60 Hz | 1.7 A |
| Phase | Single |
| Motor Thermal Protection | Auto |
| Body Diameter | 5.6 in |
| Frequency | 60 Hz |
| Number of Speeds | 1 |
| Insulation Class | B |
| Motor Shaft Rotation | CCWLE |
| Shaft Diameter | 1/2 in |
| Shaft Length | 3 in |
| Length Less Shaft | 4-1/16 in |
| Ambient Temperature - Maximum | 40 °C |
| Overall Length | 7-1/16 in |
| Product Type | Fan and Blower Motor |
| Weight | 7.5 lb |
| Sub Application | General Purpose |
| Frame Material | Steel |
| Wattage | 100 W |
