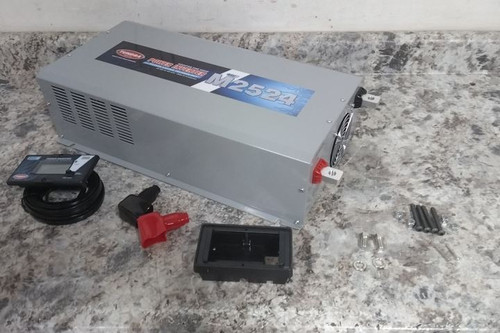

This is a Tundra inverter. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. It may be missing some hardware. There are some dents around the housing. There are also some cosmetic scuffs and scratches around the outside of the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Inverter |
| Manufacturer Part Number | M2524 |
| Inverter Output Form | Modified Sine Wave |
| DC Connection | Terminal Blocks |
| Continuous Output Power | 2,500 W |
| Peak Output Power | 5,000 W |
| Number of Outlets | 3 |
| Input Voltage | 24VDC |
| Output Voltage | 120VAC |
| Output Frequency | 60 Hz |
| Efficiency | 93 % |
| Overall Depth | 24-3/8 in |
| Overall Width | 10-3/8 in |
| Overall Height | 5-1/8 in |
| Case Material | Steel |
| Application | Buses; Coaches |
| Outlet Type | (2) NEMA 5-15R; Hardwired |
| Fused | Yes |
| Output Current | 15 A |
| Maximum Operating Temperature | 131 °F |
| Minimum Operating Temperature | -30 °F |
| Input Connection | Terminal Blocks |
| NEMA Rating | NEMA 5-15R |
| Output Connection | (2) NEMA 5-15R |
| Real Power Rating | 5,000 W |
| Type of Indicator | Green Light |
