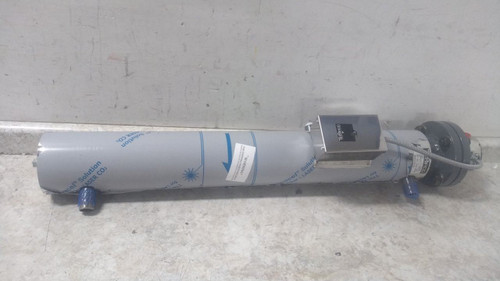

This is a Tempco circulation heater. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. It is missing the temperature control knob. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Circulation Heater |
| Wattage | 12,000 W |
| Sheath Material | Incoloy(R) 800 |
| Screw Plug Material | Stainless Steel |
| Watt Density | 48 W/sq in |
| Flange Size | 3 in |
| Voltage | 480V AC |
| Phase | 3 |
| Overall Length | 45 in |
| Control Range | 60° to 250°F |
| NPT | 1 in |
| Enclosure Type | NEMA 1 |
| Min. Immersion Depth | 44-5/8 in |
| Flange Material | Steel |
| For Use With | Air; Water |
