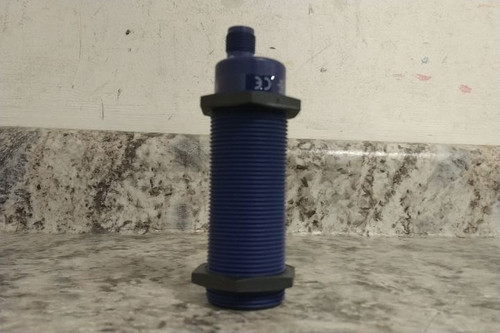

This is a Telemecanique Sensors cylindrical ultrasonic sensor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Cylindrical Ultrasonic Sensor |
| Analog Output Signal | 4 - 20 mA |
| Body Material | PBT |
| IP Rating | IP65; IP67 |
| Load Current - Maximum | 65 mA |
| Manufacturer Part Number | XXS30P2AM12 |
| Nominal Sensor Diameter | M30 Threaded |
| Number of Pins | 5 |
| Operating Frequency | 120 kHz |
| Operating Temperature - Maximum | 158 °F |
| Operating Temperature - Minimum | -13 °F |
| Output Circuit Current - Maximum | 20 mA |
| Output Circuit Current - Minimum | 4 mA |
| Output Circuit Type | Analog |
| Resistance Properties | Electrical Fast Transient Resistant; Electromagnetic Fields Resistant; Electrostatic Discharge Resistant; Shock Resistant; Vibration Resistant |
| Response Time | 200 msec |
| Sensing Distance - Maximum | 200 cm |
| Sensing Distance - Minimum | 16 cm |
| Sensor Body Style | Cylindrical |
| Sensor Connector Type | M12 |
| Sensor Diameter | 30 mm |
| Sensor Face Orientation | Straight |
| Sensor Height | 102 mm |
| Series | XXS |
| Supply Voltage Rating | 10-30V DC |
| Switching Frequency | 120 kHz |
