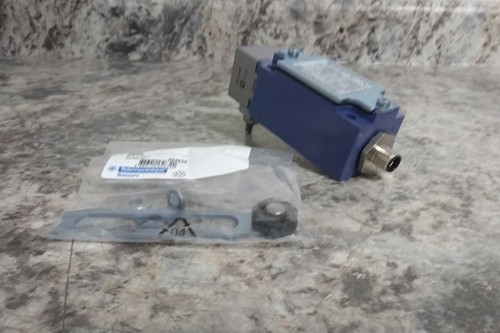

This is a Telemecanique Sensors limit switch. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Limit Switch |
| Manufacturer Part Number | XCKJ10541D |
| Series | XCKJ |
| AC Contact Rating | 4 A @ 240 V |
| Actuator Location | Side |
| Actuator Style | Roller Lever Plunger |
| Actuator Type | Roller Lever |
| Arm Material | Zinc |
| Body Depth | 1.73 in |
| Body Height | 4.01 in |
| Body Material | Zamak |
| Body Width | 1.57 in |
| Boot Sealed Actuator | No Boot Included |
| Contact Form | 1NO/1NC |
| DC Contact Rating | 4 A @ 240 V |
| Directional Movement | CCW/CW |
| Electrical Connection | 5-Pin M12 Connector |
| IP Rating | IP66 |
| Mounting Hole Diameter | 0.21 in |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Mounting Style | Surface |
| NEMA Enclosure Rating | 1; 2; 4; 12; 13 |
| Number of Mounting Holes | 4 |
| Operating Temperature - Maximum | 158 °F |
| Operating Temperature - Minimum | -13 °F |
| Operating Torque - Maximum | 2.21 in-lb |
| Overall Depth | 1.73 in |
| Overall Height | 3.5 in |
| Overall Width | 1.57 in |
| Resistance Properties | Shock Resistant; Vibration Resistant |
| Roller Diameter | 0.75 in |
| Roller Material | Thermoplastic |
| Roller Width | 0.22 in |
| Total Travel | 90° |
