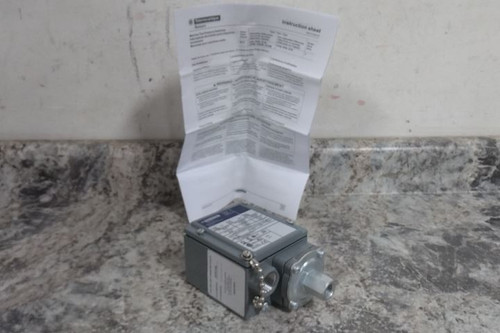

This is a Telemecanique Sensors pressure switch. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Pressure Switch |
| Manufacturer Part Number | 9012GAW2 |
| Series | 9012G |
| AC Contact Rating | 3 A @ 240 V; 6 A @ 120 V |
| Actuation Type | Diaphragm |
| Contact Form | 1NO/1NC |
| DC Contact Rating | 0.22 A @ 125 V; 0.27 A @ 250 V |
| Deadband Adjustability | Adjustable |
| Differential Pressure - Maximum | 2 psi |
| Differential Pressure - Minimum | 0.6 psi |
| Media Temperature - Maximum | 250 °F |
| Media Temperature - Minimum | -40 °F |
| NEMA Enclosure Rating | 4; 4X; 13 |
| Number of Pressure Connection Ports | 1 |
| Operating Temperature - Maximum | 185 °F |
| Operating Temperature - Minimum | -10 °F |
| Overall Depth | 2.63 in |
| Overall Height | 6.24 in |
| Overall Width | 3.5 in |
| Pressure - Maximum | 40 psi |
| Pressure - Minimum | 1 psi |
| Pressure Connection Type | 1/4-18" FNPT |
| Proof Pressure | 100 psi |
