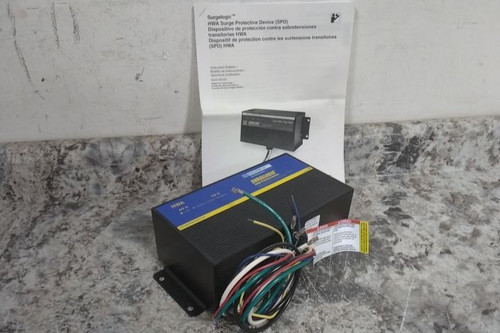

This is a Square D surge protection device. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Surge Protection Device |
| Manufacturer Part Number | TVS1HWA10X |
| Voltage | 120/240VAC |
| Phase | Single |
| Voltage Protection Rating | 1200V (L-G); 1500V (L-L); 700V (N-G); 900V (L-N) |
| Max. Continuing Operating Voltage | 150 V AC |
| Nominal Discharge Current | 20 kA |
| Modes of Protection | L-G; L-L; L-N; N-G |
| Filtering | Yes |
| Modular | No |
| Color | Black |
| Mounting Style | Chase Nipple/Wire Lead |
| Enclosure NEMA Rating | 4X |
| Number of Poles | 1 |
| Basic Material | Nonmetallic |
| Number of Wires | 3 Wires + Ground |
| System Connection | Parallel |
| Max. Surge Current per Phase | 100 kA |
| Short Circuit Current Rating | 200kA |
| Max. Surge Current per Mode | 50kA |
| UL SPD Type | Type 2 |
| Lightning Impulse Current | 100 kA |
| Length | 4.8 in |
| Width | 8.62 in |
| Depth | 3.11 in |
| Enclosure Material | Plastic |
| Max. Operating Temp. | 149 °F |
| Min. Operating Temp. | -4°F |
| Noise Attenuation | -54dB |
| Wire Gauge | 10 AWG |
| Status Indicator | Audible Alarm; LED Light |
