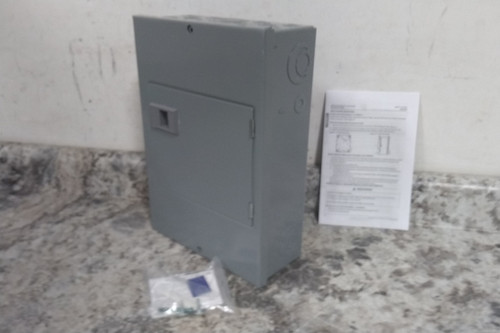

This Square D QO816L100DS indoor main lug load center is rated for 100A and 120/240V AC single-phase electrical systems. It features 8 spaces accommodating up to 16 circuits, tin-plated aluminum bus construction, and a NEMA 1 rated gray enamel steel surface-mount enclosure with integral door cover.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Load Center |
| Number of Spaces | 8 |
| Amps | 100 A |
| Voltage | 120/240V AC |
| Circuit Breaker Type | QO |
| Main Circuit Breaker or Main Lug | Main Lug |
| Max. No. of Tandem Breakers | 8 |
| Phase | 1 |
| Height | 12.56 in |
| Width | 8.91 in |
| Depth | 3-3/4 in |
| Bus Material | Tin Plated Aluminum |
| Short Circuit Current Rating | 10kA |
| Enclosure NEMA Rating | 1 |
| Cover Attachment Style | Screw On |
| Cover Closure Method | Lift-Off |
| Color | Gray |
| Enclosure Material | Steel |
| Enclosure Surface Finish | Enamel |
| Feed Location | Top/Bottom |
| Max. Operating Temp. | 104 °F |
| Min. Operating Temp. | 23 °F |
| Location | Indoor |
| For Use With | Square D QO Circuit Breakers (Sold Separately) |
