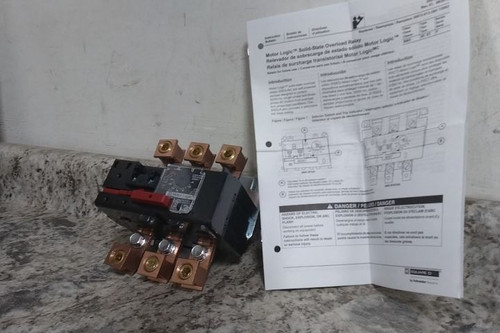

This is a Square D NEMA overload relay. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | NEMA Overload Relay |
| Manufacturer Part Number | 9065SF420 |
| Compatible Contactor Series | 9065 Motor Logic Solid State Overload Relays |
| Relay Style | NEMA |
| Overload Protection Type | Electronic |
| Thermal Units Required | Not Applicable to Electronic Type Overload Relays |
| Number of Poles | 3 |
| Phase | Three |
| Auxiliary Contact Form | 1NC |
| Relay Mounting Style | Separately Mounted |
| NEMA Size | 4 |
| Minimum Overload Relay Current Setting | 45 A |
| Maximum Overload Relay Current Setting | 135 A |
| Trip Class | 10/20 |
| Maximum Voltage Rating | 600V AC |
| Reset Type | Manual |
| Body Height | 5.92 in |
| Body Width | 5.33 in |
| Body Depth | 4.53 in |
