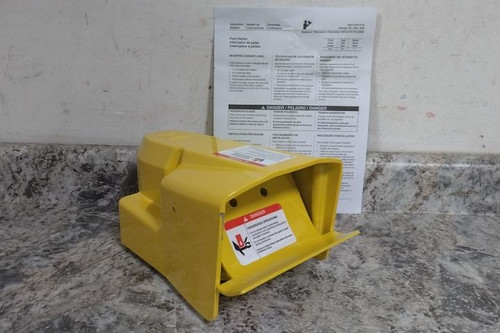

This is a Square D foot switch. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Foot Switch |
| Manufacturer Part Number | 9002AW117 |
| Series | 9002AW |
| AC Contact Rating | 10 A @ 240 V; 15 A @ 120 V; 5 A @ 600 V; 6 A @ 480 V |
| Color | Yellow |
| Contact Form | SPST |
| DC Contact Rating | 0.02 A @ 600 V; 0.2 A @ 250 V; 0.5 A @ 125 V |
| Hazardous Location Specification | Not Rated |
| IP Rating | Not Rated |
| Material | Steel |
| NEMA Enclosure Rating | 2; 4; 13 |
| Number of Pedals | 1 |
| Overall Depth | 8.54 in |
| Overall Height | 6.26 in |
| Overall Width | 6.42 in |
| Power Source | Electrically Corded |
| Switch Action | Momentary |
| Termination Connection Type | Screw Terminal |
