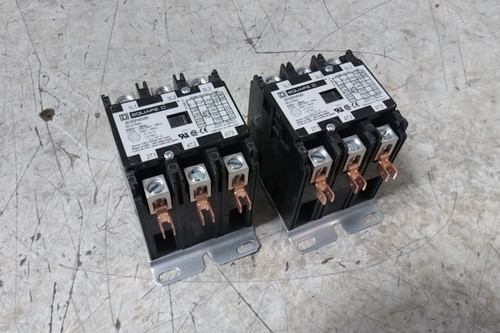

This is a package of 2 Square D 8910DPA43V09 3-pole 40A 208-240V AC coil definite purpose contactors. Designed for HVAC, refrigeration, and heating equipment requiring reliable motor and power switching up to 600V AC.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Definite Purpose Magnetic Contactor |
| Manufacturer Part Number | 8910DPA43V09 |
| Series | 8910 Series Type DPA |
| Reversing Capability | Non-Reversing |
| Number of Poles | 3 |
| Phase | Three |
| Main Pole Contact Form | 3NO |
| Full Load Current - Inductive | 40 A |
| Full Load Current - Resistive | 50 A |
| Coil Voltage | 220/208-240V AC |
| Frequency | 50/60 Hz |
| Nominal Coil Voltage @ 60Hz | 208-240V AC |
| Maximum Voltage Rating | 600V AC |
| Horsepower @ Single Phase - 120V AC | 3 hp |
| Horsepower @ Single Phase - 240V AC | 7-1/2 hp |
| Horsepower @ Three Phase - 240V AC | 10 hp |
| Horsepower @ Three Phase - 480V AC | 20 hp |
| Horsepower @ Three Phase - 600V AC | 50 hp |
| Locked Rotor Load | 160 A @ 575V AC; 200 A @ 460V AC; 240 A @ 277V AC |
| Wire Termination Type | Box Lug; Quick Disconnect |
| Contactor Frame Size | Standard |
| NEMA Enclosure Rating | No Enclosure |
| Overall Height | 3.75 in |
| Overall Width | 2.37 in |
| Overall Depth | 3 in |
| Mounting Hole Diameter | 0.2 in |
| Mounting Hole Distance - Height | 3.25 in |
| Mounting Hole Distance - Width | 2 in |
