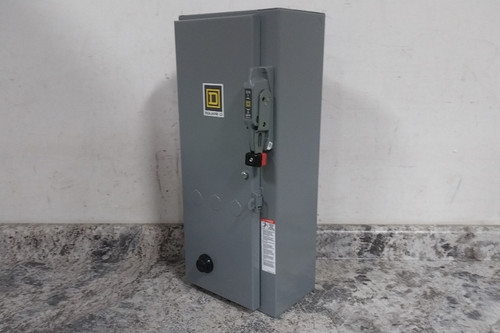

This is a Square D 8538SCG12V02S NEMA Size 1 combination motor starter featuring a 30A fusible disconnect switch and a 120V AC coil. Enclosed in a NEMA 1 general-purpose painted steel housing, this non-reversing starter is rated for three-phase motor control applications up to 600V AC.
Inspection Notes:
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. The outer cardboard packaging exhibits tearing and heavy shelf wear. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Combination Starter |
| Manufacturer Part Number | 8538SCG12V02S |
| Series | 8538 |
| Starter Style | NEMA |
| Reversing Capability | Non-Reversing |
| Overload Protection Type | Thermal |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Short Circuit Protection | Fusible Disconnect |
| UL Fuse Class | H |
| Number of Poles | 3 |
| Phase | Three |
| NEMA Size | 1 |
| Max Current (AC) | 30 A |
| Control Transformer | No |
| Trip Class | 10/20 |
| Nominal Coil (Secondary) Voltage | 120V AC |
| Frequency | 50/60 Hz |
| Maximum Voltage Rating | 600V AC |
| Horsepower @ Three Phase - 208V AC | 5 hp |
| Horsepower @ Three Phase - 240V AC | 5 hp |
| Horsepower @ Three Phase - 480V AC | 10 hp |
| Horsepower @ Three Phase - 600V AC | 10 hp |
| Includes Auxiliary Contacts | No |
| Operator Type | No Operator |
| Includes Pilot Light | No |
| Wire Termination Type | Quick Disconnect |
| NEMA Enclosure Rating | 1 |
| Frame Size | S |
| Overall Height | 22.5 in |
| Overall Width | 9.5 in |
| Overall Depth | 8.34 in |
| Mounting Style | Bracket |
| Mounting Hole Distance - Height | 22.5 in |
| Mounting Hole Distance - Width | 9.5 in |
| Mounting Hole Diameter | 0.31 in |
