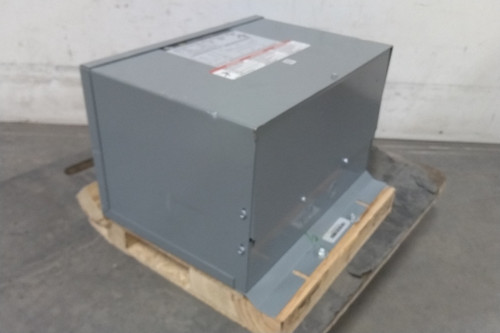

Square D 6T5F Dry Type Power Distribution Transformer
This Square D 6 kVA three-phase encapsulated dry type general purpose transformer is designed for step-down voltage conversion from a 480V Delta primary input to a 240V Delta secondary output at 60 Hz. Features copper winding, a 115 °C temperature rise, and a NEMA 3R rainproof painted steel enclosure suitable for wall mounting indoors or outdoors.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit as well as some slight dents. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Dry Type Power Distribution Transformer |
| Manufacturer Part Number | 6T5F |
| Color | Gray |
| Enclosure Finish | Painted |
| Enclosure Material | Steel |
| Frequency | 60 Hz |
| IP Rating | IP54 |
| Input Voltage | 480V AC |
| Knockout Size | 3/4 in; 1 in |
| Mounting Location | Wall |
| NEMA Enclosure Rating | 3R |
| Output Voltage | 240V AC Delta |
| Overall Depth | 9 in |
| Overall Height | 13.5 in |
| Overall Width | 14.75 in |
| Phase | Three |
| Power Rating | 6 kVA |
| Sound Level | 37 dB |
| Temperature Rise | 115 °C |
| Voltage Function | Step Down |
| Winding Material | Copper |
