Square D 500SV1B 240VAC; 480VAC Input Dry Type Power Distribution Transformer-35680901

Square D 500SV1B 240VAC; 480VAC Input Dry Type Power Distribution Transformer-35680901

SKU:
35680901
$110.49
$562.34
(You save $451.85 )

The Square D 500SV1B is a 0.5 kVA (500 VA) single-phase dry type low voltage general purpose transformer. Designed for wall mounting in a NEMA 3R rainproof painted steel enclosure, it reliably steps down primary voltages of 240V or 480V AC to 120V or 240V AC output at 60 Hz.

Inspection Notes:

This transformer was fully unpacked for visual inspection. The unit requires hardwire installation and was not plug-in tested.

Defects Noted:

  • Minor cosmetic scuffs, scratches, and a small dent along the top enclosure corners.
  • Original factory box is heavily distressed, worn, and taped.

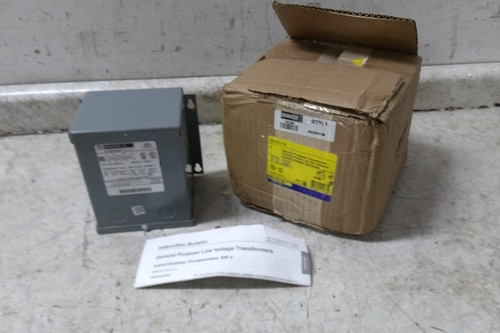

Please refer to the photos for more information.

This unit only includes what is photographed in the listing.



Technical Specs

ItemDry Type Power Distribution Transformer
Manufacturer Part Number500SV1B
ColorGray
Enclosure FinishPainted
Enclosure MaterialSteel
Frequency60 Hz
IP RatingIP54
Input Voltage240V AC; 480V AC
Knockout Size1/2 in
Mounting LocationWall
NEMA Enclosure Rating3R
Output Voltage120V AC; 240V AC
Overall Depth4.69 in
Overall Height5.5 in
Overall Width6.19 in
PhaseSingle
Power Rating0.5 kVA
Sound Level37 dB
Temperature Rise80 °C
Voltage FunctionStep Down
Winding MaterialCopper
Shipping Cost:
Calculated at Checkout
Weight:
21.00 LBS
Width:
10.00 (in)
Height:
10.00 (in)
Depth:
10.00 (in)
