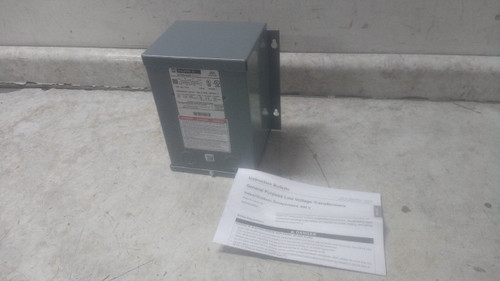

This is a Square D dry type power distribution transformer. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some slight dents around the enclosure. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Dry Type Power Distribution Transformer |
| Manufacturer Part Number | 1S1F |
| Color | Gray |
| Enclosure Finish | Painted |
| Enclosure Material | Steel |
| Frequency | 60 Hz |
| IP Rating | IP54 |
| Input Voltage | 240V AC; 480V AC |
| Knockout Size | 1/2 in |
| Mounting Location | Wall |
| NEMA Enclosure Rating | 3R |
| Output Voltage | 120V AC; 240V AC |
| Overall Depth | 5.31 in |
| Overall Height | 8.13 in |
| Overall Width | 6.94 in |
| Phase | Single |
| Power Rating | 1 kVA |
| Sound Level | 37 dB |
| Temperature Rise | 115 °C |
| Voltage Function | Step Down |
| Winding Material | Copper |
