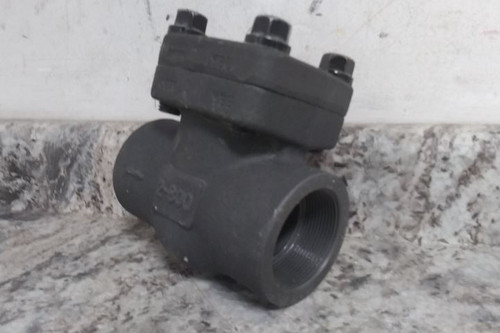

This is a Sharpe Valves check valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Check Valve |
| Manufacturer Part Number | 4371000950 |
| Valve Body Style | Inline |
| Pipe Size | 2 in |
| Connection Type | FNPSM x FNPSM |
| Body Material | Carbon Steel |
| Media Temp. Range | 700 °F |
| Max. Pressure (CWP) | 1,415 psi |
| Check Mechanism | Swing |
| Valve Ways | 2-Way |
| For Media | Corrosive Chemicals |
| Flow Coefficient (Cv) | 82 |
| Overall Length | 5.51 in |
| Connection Size - Side 1 | 2 in |
| Connection Gender - Side 1 | Female |
| Connection Type - Side 1 | NPSM |
| Connection Size - Side 2 | 2 in |
| Connection Type - Side 2 | NPSM |
| Connection Gender - Side 2 | Female |
| Operating Temperature - Maximum | 700 °F |
| Mounting Orientation | HorizontalVertical |
| Silent Check | Standard |
| Seat Material | Metal |
| Seal Material | 304 Stainless Steel; Graphite |
| Disc Material | 316 Stainless Steel |
| Spring Material | 316 Stainless Steel |
| Height - Cap to Inlet Center | 2-3/8 in |
| Includes Counterweight | No Counterweight |
| 3-A Compliance | Not Rated |
| Vacuum Service Rating | Not Rated |
| Valve Series | 2483SC |
