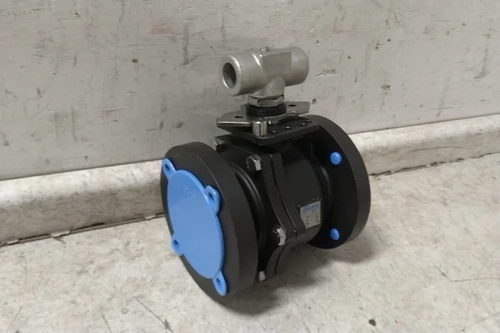

Sharpe 4351003880 (Model 50114) 3" Class 150 Carbon Steel Ball Valve
This industrial two-piece carbon steel ball valve features a 3-inch full port design, Class 150 ANSI flanged end connections, 316 stainless steel ball and stem, TFM seats, and an ISO 5211 mounting pad for actuator attachment. It is rated for up to 285 PSI CWP and maximum temperatures up to 500°F.
Inspection & Defects Noted:
We have inspected this item and we do not have the capability to install the unit to fully test it. The manual operating handle lever is missing and not included with this valve. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Manual Two-Way Ball Valve |
| Manufacturer Part Number | 4351003880 |
| For Media | Air; Corrosive Chemicals; Non-Potable Water; Steam |
| Body Material | Carbon Steel |
| Valve Construction | Two-Piece |
| Valve Body Style | Straight |
| Ball Port Style | Full Port |
| Nominal Valve Size | 3 in |
| Connection Type - Side 1 | Flange |
| Connection Size - Side 1 | 3 in |
| Connection Type - Side 2 | Flange |
| Connection Size - Side 2 | 3 in |
| ANSI Flange Class | Class 150 |
| Max. Pressure (CWP) | 285 psi |
| Max. Pressure (Steam) | 200 psi |
| Max. Pressure (Combustible Gas) | Not Rated |
| Vacuum Service Rating | 29 in Hg |
| Coefficient of Volume (Cv) | 1,150 |
| Handle | Missing (Not Included) |
| Handle Material | Galvanized Steel |
| Handle Color | Gray |
| Ball Material | 316 Stainless Steel |
| Seat Material | TFM |
| Seal Material | PTFE |
| Stem Material | 316 Stainless Steel |
| Stem Type | Blowout Resistant |
| Media Temp range | 0 °F to 500 °F |
| 3-A Compliance | Not Rated |
| Overall Length | 8 in |
| Handle Length | 13.75 in |
| Valve Series | 50 |
