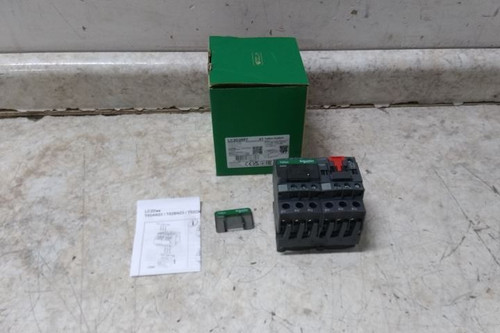

This is a Schneider Electric IEC magnetic contactor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | IEC Magnetic Contactor |
| Manufacturer Part Number | LC2D25F7 |
| Series | TeSys Deca |
| Contactor Style | IEC |
| Reversing Capability | Reversing |
| Number of Poles | 3 |
| Main Power Pole Contact Form | 3NO |
| Auxiliary Contacts Included | 1NO/1NC |
| Full Load Current - Inductive | 25 A |
| Full Load Current - Resistive | 40 A |
| Coil Voltage | 110V AC |
| Frequency | 50/60 Hz |
| Nominal Coil Voltage @ 60Hz | 110V AC |
| Maximum Voltage Rating | 690V AC |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| Horsepower @ Single Phase - 240V AC | 3 hp |
| Horsepower @ Three Phase - 208V AC | 5 hp |
| Horsepower @ Three Phase - 240V AC | 7-1/2 hp |
| Horsepower @ Three Phase - 480V AC | 15 hp |
| Horsepower @ Three Phase - 600V AC | 20 hp |
| Wire Termination Type | Screw Clamp |
| Integrated Surge Suppression | No |
| IP Rating | IP20 |
| NEMA Enclosure Rating | No Enclosure |
| Overall Height | 3.35 in |
| Overall Width | 3.54 in |
| Overall Depth | 3.62 in |
| Mechanical Operating Durability | 15,000,000 |
| Electrical Operating Durability | 1,400,000; 1,650,000 |
| Minimum Operating Temperature | -40 °F |
| Maximum Operating Temperature | 140 °F |
