This is a Schneider Electric IEC contactor. Please refer to the technical specifications in the listing for more information.

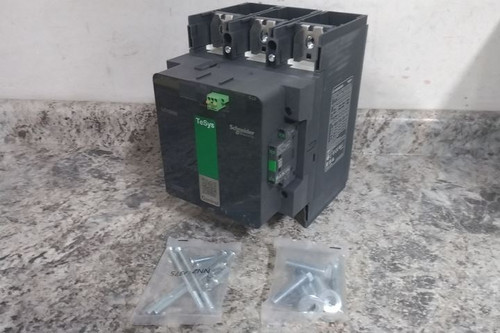

We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Contactor |
| Manufacturer Part Number | LC1G630EHEN |
| Series | TeSys Giga |
| Contactor Style | IEC |
| Number of Poles | 3 |
| Main Power Pole Contact Form | 3NO |
| Auxiliary Contacts Included | 1NO/1NC |
| Phase | Single |
| Full Load Current - Inductive | 630 A |
| Full Load Current - Resistive | 1,050 A |
| Coil Voltage | 48-130VAC/DC |
| Frequency | 50/60 Hz |
| Nominal Coil Voltage @ 60Hz | 120VAC; 48VAC |
| Maximum Voltage Rating | 1000VAC |
| Wire Termination Type | Spring Loaded |
| Integrated Surge Suppression | No |
| IP Rating | IP20 |
| Overall Height | 11.18 in |
| Overall Width | 8.31 in |
| Overall Depth | 10.47 in |
| Mechanical Operating Durability | 5,000,000 |
| Minimum Operating Temperature | -13 °F |
| Maximum Operating Temperature | 140 °F |
