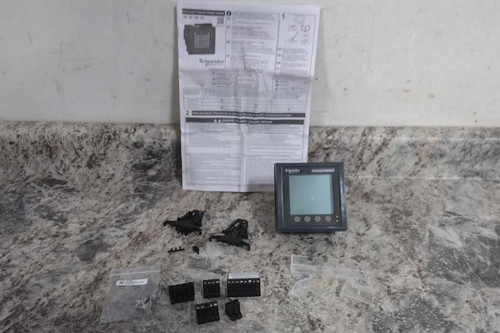

This is a Schneider Electric power meter. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit should be installed by a professional. The plastic mounting clips are not attached and one is broken. They may need to be replaced. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Power Meter |
| Manufacturer Part Number | METSEPM5560 |
| Accuracy | ±0.20% |
| Communication Method | EtherNet/IP |
| Current | 1 A; 5 A |
| Display | Backlit LCD |
| Frequency | 50/60 Hz |
| Input Voltage | 120/480V AC; 125/250V DC |
| Measures | Current; Energy; Frequency; Power; Power Factor; Reactive Power; Voltage |
| Mounting | Panel; Surface |
| NEMA Enclosure Rating | No Enclosure |
| Operating Temperature - Maximum | 158 °F |
| Operating Temperature - Minimum | -13 °F |
| Overall Depth | 2.83 in |
| Overall Height | 3.78 in |
| Overall Width | 3.78 in |
| Phase | Three |
