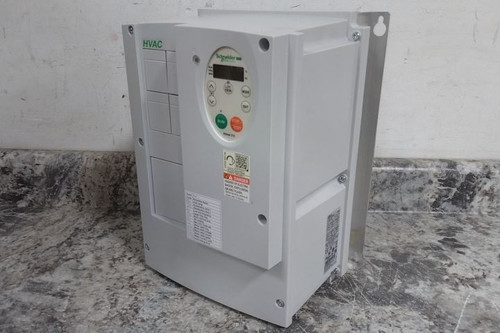

This is a Schneider Electric variable frequency drive. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Variable Frequency Drive |
| Manufacturer Part Number | ATV212W075N4 |
| Enclosure Rating | NEMA 12 |
| Maximum Output Power | 1 hp |
| Input Voltage | 380 to 480VAC |
| Input Phase AC | Three |
| Input Frequency | 50/60 Hz |
| Output Phase AC | Three |
| Output Voltage | 323 to 528VAC |
| Output Frequency Range | 0.5 to 200 Hz |
| Maximum Output Current | 2.2 A |
| With Bypass / No Bypass | No Bypass |
| With Line Contactor / No Line Contactor | No Line Contactor |
| Start/Stop Control | Programmable |
| Application | Pumps and Fans in HV AC |
| Enclosure | Totally Enclosed |
| Overall Depth | 7-1/2 in |
| Overall Height | 11-5/8 in |
| Overall Width | 8-1/2 in |
| Display Type | LCD, LED |
| Control Method | Keypad or Logic Input |
| Adjustable Acceleration Time | 0.01 to 3,200 sec |
| Adjustable Deceleration Time | 0.01 to 3,200 sec |
| Color | Black |
| Control Type | Keypad, Logic Input |
| Digital Readout | Hertz, Motor Current, KW, Motor Voltage |
| Displays | LED, Optional Remote Mount LCD |
| Dynamic Braking | No |
| Ethernet Port Included | No |
| Input Type | Analog; Discrete |
| Input Voltage Range | 380 to 480V AC |
| Key Pad Lockout | Yes |
| Number of Inputs | 2 |
| Number of Outputs | (1) Analog; (2) Discrete |
| Output Type | Analog; Discrete |
| Output Voltage Range | 323V AC to 528V AC |
| Protection | Against Exceeding Limit Speed: Drive; Against Input Phase Loss: Drive; Break on the Control Circuit: Drive; Input Phase Breaks: Drive; Line Supply Overvoltage and Undervoltage: Drive; Line Supply Undervoltage: Drive; Motor Phase Break: Motor; Overcurrent Between Output Phases and Earth: drive; Overheating Protection: Drive; Overvoltage's on the DC Bus: Drive; Short-Circuit Between Motor Phases: Drive; Thermal Power Stage: Drive; Thermal Protection: Motor; With PTC Probes: Motor |
| Starting Torque | 120% |
| Style | Heat Sink |
| Torque @ 1 Hz | 110% |
| Torque Application | Constant Torque; Variable Torque |
| Series | ATV212 |
