This is a Schaefer circulating fan. Please refer to the technical specifications in the listing for more information.
We have inspected this item and it powers on when plugged in. We do not have the capability to assemble the unit to test it any further. This unit may be missing some hardware. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.

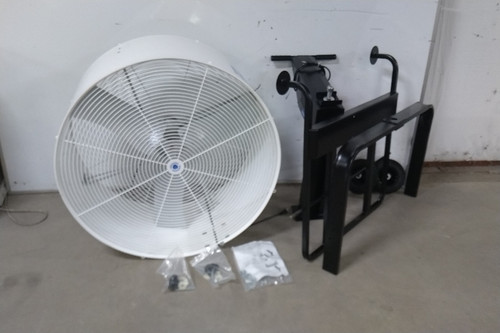

This unit only includes what is photographed in the listing.
Technical Specs
| Item | Circulating Fan |
| Manufacturer Part Number | VKO36-O |
| Blade Diameter | 36 in |
| Wheeled Base | Mobile |
| Oscillation | Oscillating |
| Watts | 450 W |
| Number of Speeds | 1 |
| Voltage | 115/230V AC |
| Phase | Single |
| Motor HP | 1/2 hp |
| Amps | 7/3.5 A |
| Height | 75 in |
| Fan Mounting Location | Floor |
| Air Velocity @ 20 Ft. | 350 fpm |
| Assembly Required | No |
| Max. Ambient Temp. | 104 °F |
| Hz | 60 Hz |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure | Totally Enclosed Air-Over |
| Motor Insulation | F |
| Thermal Protection | Auto |
| Bearing Type | Ball |
| Fan Power Source | Plug-In |
| Fan Cord Length | 5 ft |
| NEMA Plug Configuration | 5-15P |
| Width | 42 in |
| Depth | 45 in |
| Number of Blades | 3 |
| Blade Material | Steel |
| Shaft Dia. | 5/8 in |
| Fan Blade Color | Silver |
| Fan Housing Material | Polyethylene |
| Color | White |
| Guard Material | Steel |
| Wire Guard Finish | Powder Coated |
| Wheel Dia. | 8 in |
| Number of Conductors | 3 |
| Drive Type | Direct Drive |
| Product Type | Circulating Fan |
| Airflow | 11,700 cfm |
| Application | Industrial |
